Installing

1. Download the APK: Alpha APK download
2. If not already, put the Quest 2 or Quest Pro headset in developer mode.
3. Install the APK using Sidequest advanced installer (recommended) or android developer bridge.

VR App Design Notes

Consider this page a ‘developers commentary’ about the immersive design of the experience.

With knowledge of the exact target audience and classroom, we were able to tailor the design of our experience. At a high level, we aimed for the experience to be more of a digital exploration tool than a guided tour. The experience should be easily interruptible, easily restartable without any fragile user states, and facilitate communication between those outside and inside VR. It must be usable by those with extremely limited VR experience.

Asymmetric Communication

We knew a goal was to facilitate communication between a Professor outside of VR, and student wearing the headset.

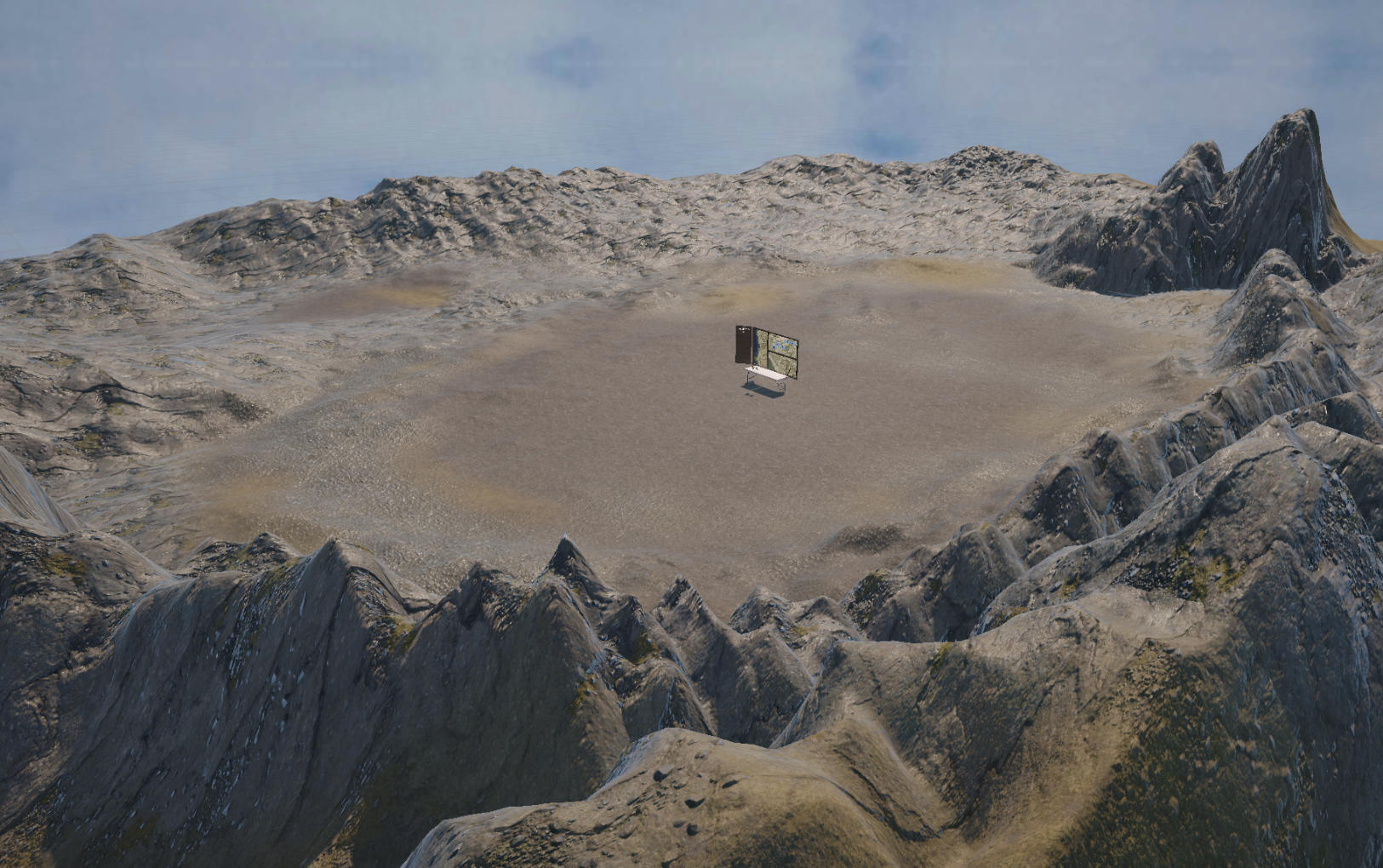

• Directionally recognizable environment (utilizing landmarks)
• Almost No Audio
• Verbally communicable interaction signifiers
• Verbally understandable fossil site names
• In the future, we plan to explore “pass-through” AR support, and research how to design for asymmetric classroom environments using pass-through AR devices.

Allow for Minimal Movement.

• Standing or Seated
• Can “bring the fossil to you” instead of walk over to it

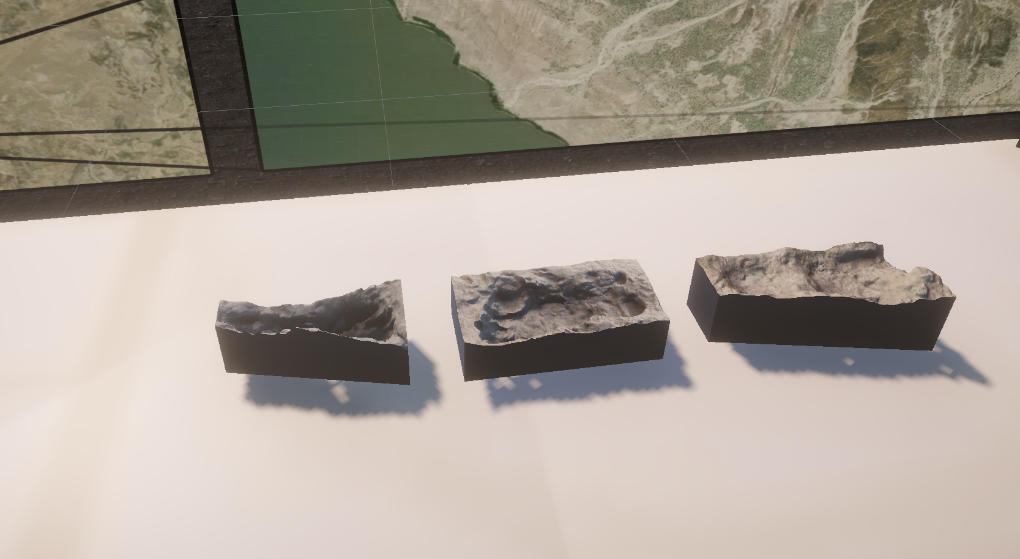

• Hand-held close-ups that can be scaled and repositioned

Accessibility

• Everything works either standing/seated
• Colorblind-friendly UI elements
• Simple, effective interaction feedback
• Run with enough performance overhead to allow for smooth casting
• Extensive student testing
• Rely on minimal controls, and use only pre-learned interaction paradigms (i.e. Quest’s OS-level interactions, like laser-pointer menus)

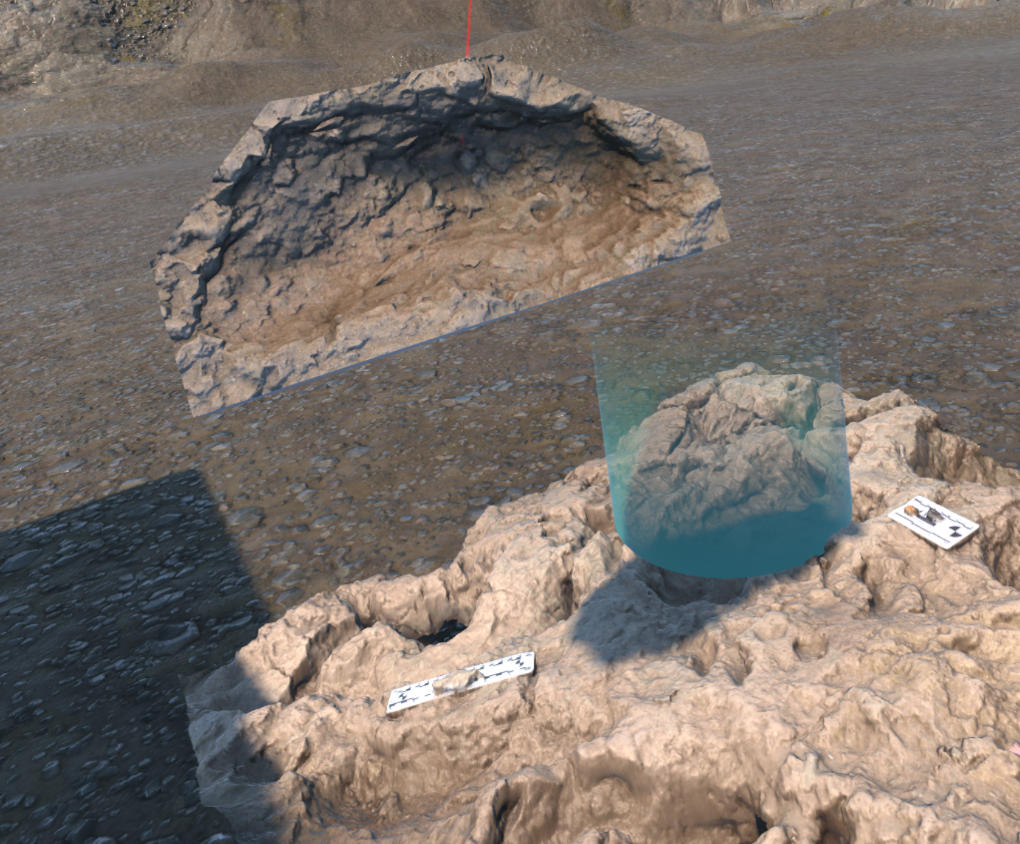

• Holding a close-up model highlights the location of that model on the full scan (see image)

Notes on Scope and Future Goals

We were not able to implement everything we wished. With more resources, we would like to continue the project as a study in designing for asymmetric classroom experiences. We believe that asymetric classroom experiences, where not all the participants are in VR, and all are in the classroom together, is a fruitful and under-explored avenue of research in the immersive media space.

Other elements that were out of scope were accessibility features that required more technical investment to get running or working. An experience must be usable for as many humans as possible if the goal is to deploy it in the classroom, and we have more work to do in this regard.

• Listen to events fired off a macropad controlled by an arduino, allowing a professor to trigger events for students in VR.
• We wanted smoother support for adjusting the heights of the table for individuals seated.
• Haptics feedback for interactions
• 3D model of controller instead of hand model - useful for verbally communicating buttons and interactions to users.
• A flashlight. We think it would be interesting to allow the user to get close with a light to change the shadows on the fossil, exploring its shape in a novel way that is difficult to do without a realtime rendering engines.
• More fossil sites.
• We are not completely sold on our map interaction. Efforts at designing more tangible and flexible solutions add a cost of onboarding or prevent standing-only interaction.
